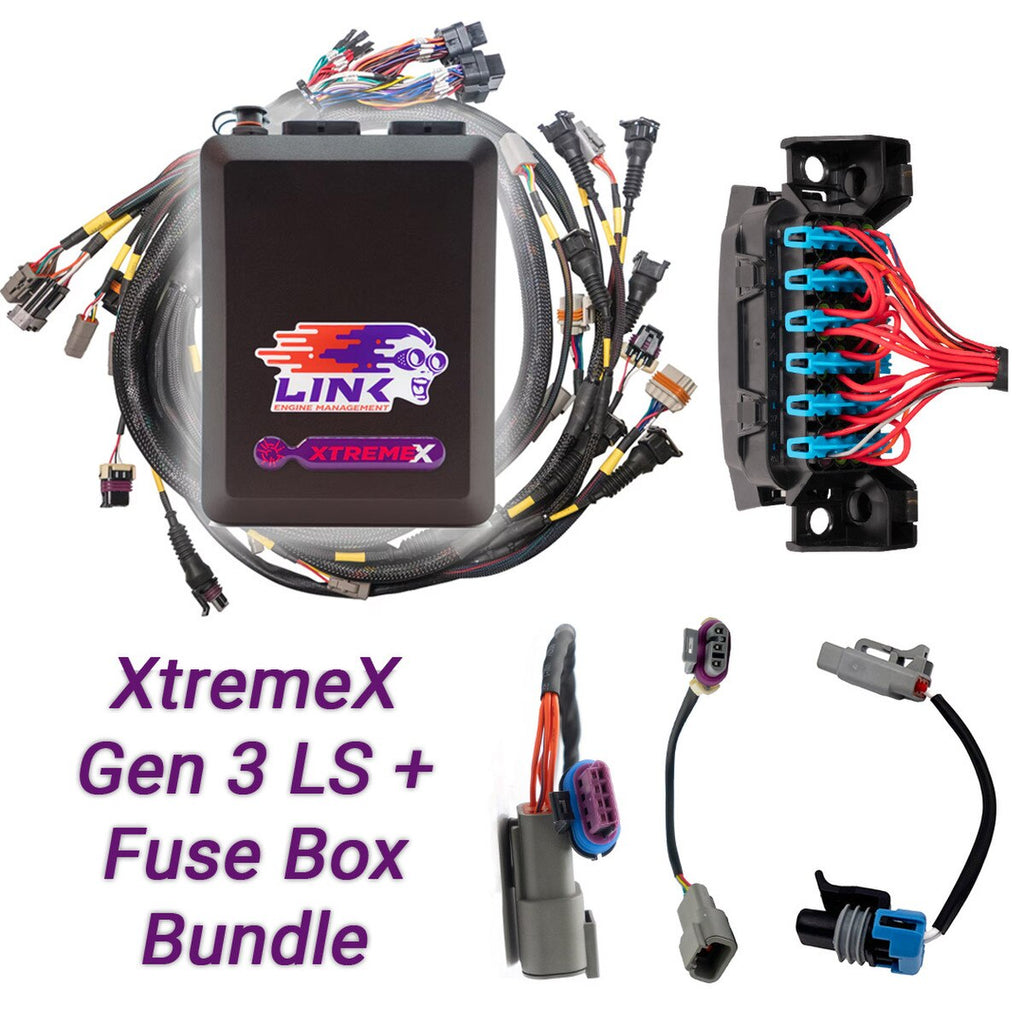

Link GM LS Engine ECU and Harness package
Drive by cable kits include Link Storm ECU, Drive by wire include Link Xtreme ECU (select the DBW kit to upgrade to the storm and add a drive by wire to drive by cable adapter - Formula Drift ProSpec cars MUST use a Link Xtreme ECU!)
CONTACT US IF YOU NEED HELP WITH SELECTING THE RIGHT OPTIONS! We'd be happy to help put together a package or even do discounted bundles with other devices! email sales@tunertools.com or call 888-623-8863
Don't forget to add canbus widebands! Find these here:
Single Channel Link CanLambda
Plug and Play LS installation!
Terminated Engine Harness to cover a wide range of GM LS Engine Variations. NOW WITH OPTIONS FOR PRE-WIRED FUSE BLOCK! Simplify installation!
Please note that due to the large number of Engines supported it may require user modification for some applications, see Installation Manual or Contact our Tech Support team to confirm suitability for your Engine and determine which additional adapters you may need.
PCLink start up MAPs available for both Gen3 and Gen4 LS (See below for download)
Engines Supported
Gen 3 LS1/LS6
Gen 4 LS2/LS3/LS7*
Compatible ECUs
G4X StormX (Cable Operated Throttle Body)
G4X XtremeX (Cable Operated and Drive-by-Wire Throttle Body)
ECU options
- This package has options for the G4X Storm, or G4X Xtreme ECUs
- The G4X Xtreme is required for Drive-By-Wire throttle bodies!
Features
- Sequential fuel and ignition control
- full use of OEM sensors
- Knock detection for Gen3 and Gen 4 OEM knock sensor setups
- Boost Control
- Nitrous Control
- Motorsports functions Including anti-lag, launch control, and traction control
- Flex Fuel support
- Closed loop fuel (requires external wideband)
Additional Features on the Xtreme ECU
- Drive-by-wire control
- Auto blip gear and shift control (and E-throttle based Anti Lag)
- Additional user definable tables
- Advanced closed loop (including dual bank control - requires external wideband per bank)
